FRPA GNSS antenna SSL990XF

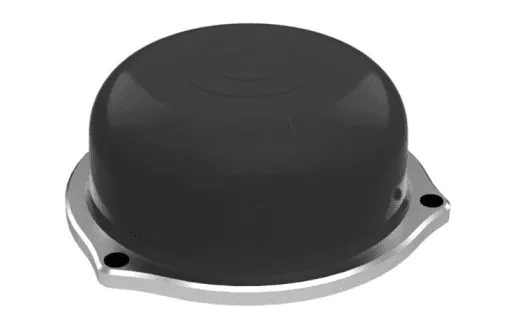

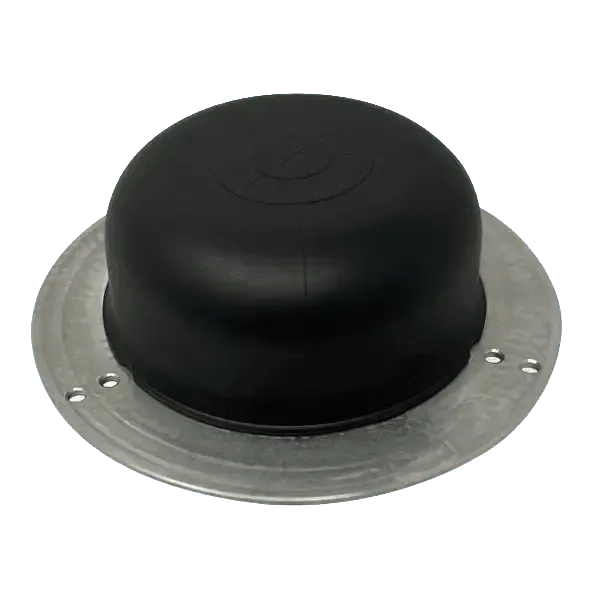

The patent-pending SSL990XF low-profile cross dipole antenna with parasitic resonators
Share:
The patent-pending SSL990XF low-profile cross dipole antenna with parasitic resonators is designed for precision positioning, covering the GPS/QZSS-L1/L2/L5, QZSS-L6, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b/E6, BeiDou-B1/B2/B2a/B3, and NavIC-L5 frequency bands, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], as well as L-band correction services.
Key features
- Extremely light (88 g)
- Excellent RH circular polarised signal reception
- Great multi-path rejection
- Increased system accuracy
- Excellent signal-to-noise ratio
- Industrial temperature range
- Signal Support
-
GPS L1, L2, L5
-
QZSS L6
-
GLONASS G1, G2, G3
-
Galileo E1, E5b, E6
-
BeiDou B1, B2, B2a, B3
-
IRNSS/NAVIC L5
-
L-band correction services
-
- Passbands
-
Lower band 1164 to 1300 MHz
-
L-band Corr. 1539 to 1559 MHz
-
Upper band 1559 to 1606 MHz
-
- VSWR < 1.5:1 typ., 1.8:1 max.
-
-
Noise Figure 2.5 dB typ.
-
Gain 28 dB typ., 35 dB typ
-
P 1dB Output 13.3 dBm @ L1 , 13.1 dBm @ L2/L5
-
LNA Group Delay 20 ns @ L1 , 3 ns @ L2, 48 ns @ L5
-
Supply Voltage Range 2.5 to 16 VDC nominal, up to 50mV p-p ripple
-
Supply Current 30 mA typ. (28 dB), 35 mA typ. (35 dB)
-
-
-

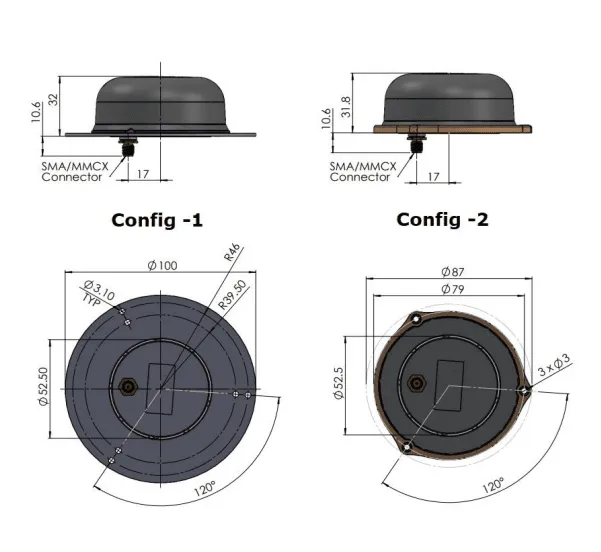

Dimensions-1: 100 mm (dia.) x 32 mm (h.)
-
Dimensions-2: 79 mm (dia.) x 32 mm (h.)
-
Weight 88 g (-1), 75 g (-2)
-
Operating Temperature -40 °C to + 85 °C
-
Storage Temperature -55 °C to +95 °C
-
Vibration MIL-STD-810-G - Test Method 514.6
-
Shock 50G, 11 ms X,Y,Z
-
IP Rating IP67
-
