Helical GNSS antenna HC990XF
The patent-pending HC990XF eXtended-filter low-profile helical antenna is designed for precision positioning.
Share:
The patent-pending HC990XF eXtended-filter low-profile helical antenna is designed for precision positioning, covering the GPS/QZSS-L1/L2/L5, QZSS-L6, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b/E6, BeiDou-B1/B2/B2a/B3, and NavIC-L5 frequency bands, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], as well as L-band correction services.
Key features
- Extremely light (45 g)
- Excellent RH circular polarized signal reception
- Great multipath rejection
- Increased system accuracy
- Excellent signal-to-noise ratio
- Industrial temperature range
- Signal Support
-
GPS L1, L2, L5
-
GLONASS G1, G2, G3
-
Galileo E1, E5a, E5b, E6
-
BeiDou B1, B2a, B2b, B3
-
IRNSS/NAVIC L5
-
QZSS L6
-
- Passbands
-
Lower band 1164 to 1300 MHz
-
L-band Corr. 1539 to 1559 MHz
-
Upper band 1559 to 1606 MHz
-
- VSWR < 1.5:1 typ., 2:1 max.
-
-
Noise Figure 2.5 dB typ.
-
Gain 28 dB typ., 35 dB typ
-
P 1dB Output 11 dBm typ.
-
Group Delay 20 ns (L1), 3 ns (L2), 31 ns (L5), 48 ns (L5)
-
Supply Voltage Range 2.5 to 16 VDC nominal, up to 50mV p-p ripple
-
Supply Current 26 mA typ. (28 dB), 32 mA typ. (35 dB)
-
-
-

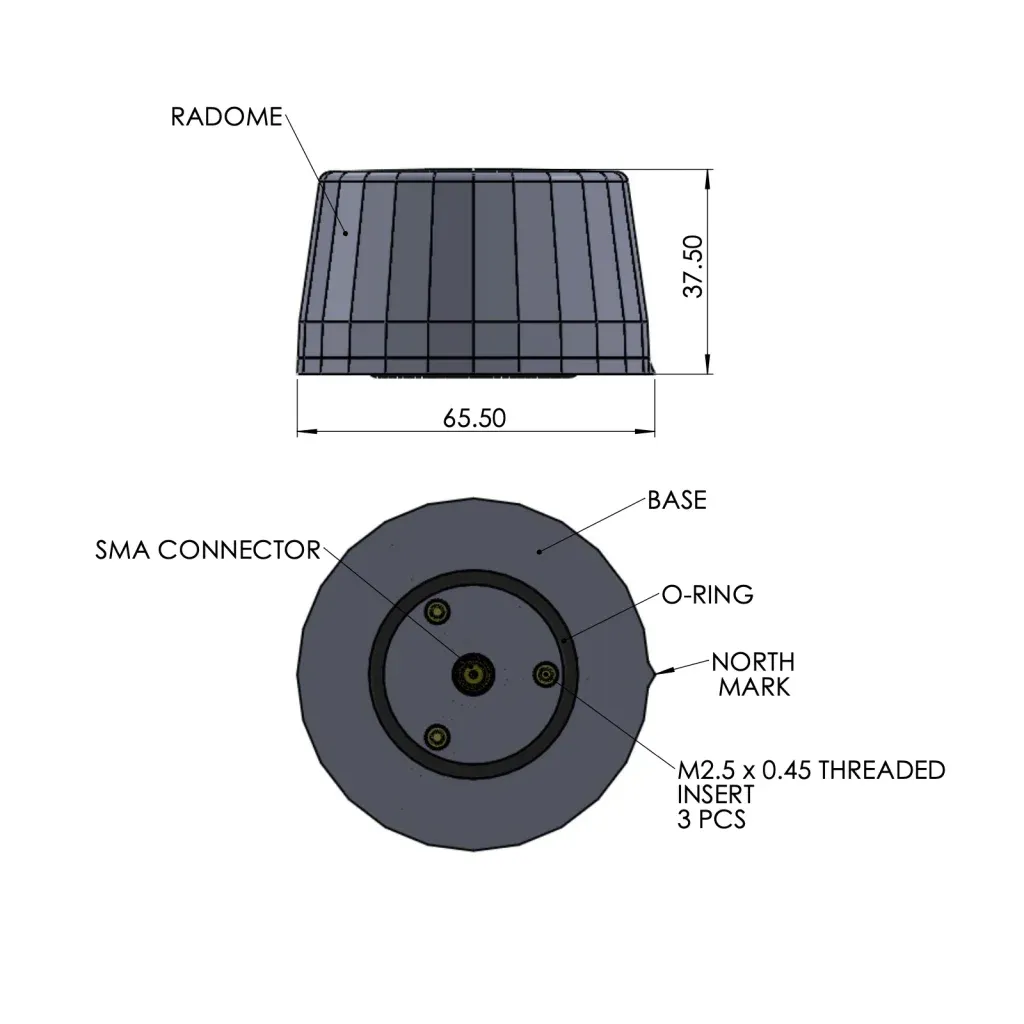

Dimensions 65.50 mm (dia.) x 37.50 mm (h.)
-
Weight 45 g
-
Operating Temperature -40 °C to + 85 °C
-
Storage Temperature -55 °C to +95 °C
-
Vibration MIL-STD-810-G - Test Method 514.6
-
Shock MIL-STD-810-G - Test Method 516.6
-
IP Rating IP67
-
