Helical GNSS antenna HS90

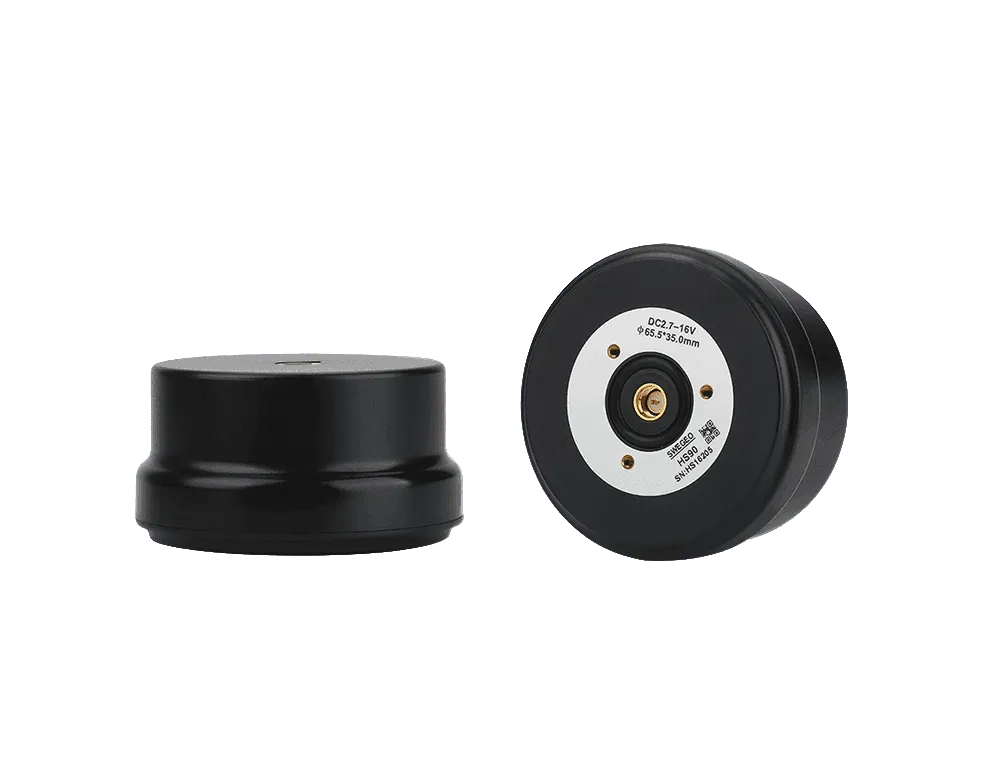

The Swegeo HS90 is a high-performance GNSS spiral antenna designed with multi-arm, multi-feed point technology.
Share:
The Swegeo HS90 is a high-performance GNSS spiral antenna designed with multi-arm, multi-feed point technology. It supports multi-constellation and multi-frequency signals, ensuring robust and accurate positioning.
Key features
- Multi-Constellation GNSS Support
- Dual Antenna Configuration
- High Update Rate and Low Latency
- Rugged Design with IP67 Rating
- Signal Support
-
GPS L1, L2, L5
-
GLONASS G1, G2, G3
-
BeiDou B1, B2, B3
-
Galileo E1, E5a, E5b, E6
-
QZSS L1, L2, L5
-
IRNSS L1, L2, L5
-
SBAS L1, L2, L5
-
L-band
-
- Passbands
-
Lower band 1164 to 1300 MHz
-
Upper band 1540 to 1606 MHz
-
- VSWR < 1.8:1 typ., 2.0:1 max.
- Nominal Impedance 50 Ω
-
-
LNA Gain 32 ±3.0 dB (Typ. @25°C, 2.7VDC~16VDC)
-
Output of Band Rejection ≤1050 MHz: >65 dB, @1400 MHz: >60 dB, ≥1690 MHz: >65 dB
-
Operation Voltage 2.5 ~ 16.0 V DC (Recommend 2.7 VDC ~ 16 VDC)
-
Operation Current ≤45 mA
-
-
-
Dimensions Φ65.5 mm × 35.0 mm
-
Weight 40 gram
-
Connector SMA-J
-
Operating Temperature -40°C to +85°C
-
Storage Temperature -45°C to +85°C
-
Ingress Rating IP67
-
